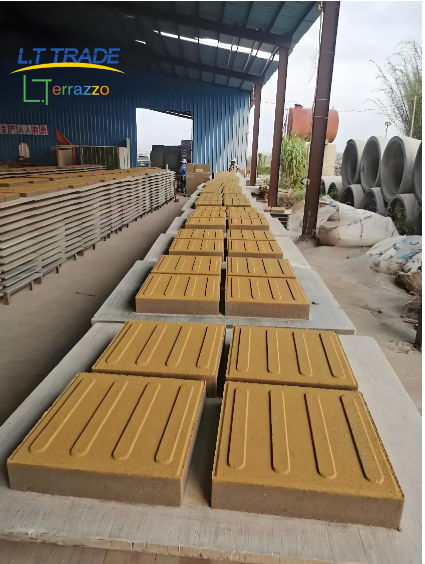

Terrazzo tactile paving tiles are specialized paving units produced using the terrazzo manufacturing process; they constitute a vital component of tactile paving systems, primarily serving to provide navigational guidance and warning signals to visually impaired individuals. The production workflow for terrazzo tactile paving tiles can be broadly categorized into three core stages: raw material preparation, molding and processing, and post-processing treatment.
Terrazzo tactile paving tiles are characterized by their high strength, exceptional wear resistance, strong weather resistance, distinct tactile texture, and aesthetic appeal, making them a preferred material for the construction of urban barrier-free facilities.
These tiles are widely utilized in the development of urban barrier-free environments, and are particularly well-suited for public areas characterized by high pedestrian traffic and stringent durability requirements, thereby ensuring safe passage for the visually impaired.
Advantages
Terrazzo tactile paving tiles possess the following core characteristics:
1. Superior Material Performance: Crafted from natural aggregates bonded with cementitious binders and formed through a multi-stage manufacturing process, these tiles feature a hard, wear-resistant texture and high compressive strength. They are capable of withstanding frequent heavy foot traffic in outdoor settings, ensuring a long service life. Furthermore, they exhibit excellent weather resistance, allowing them to adapt to diverse climatic environments.

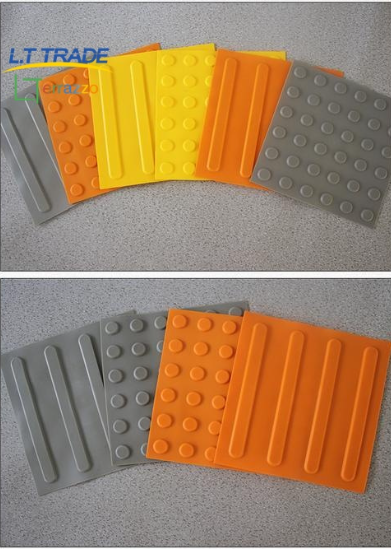

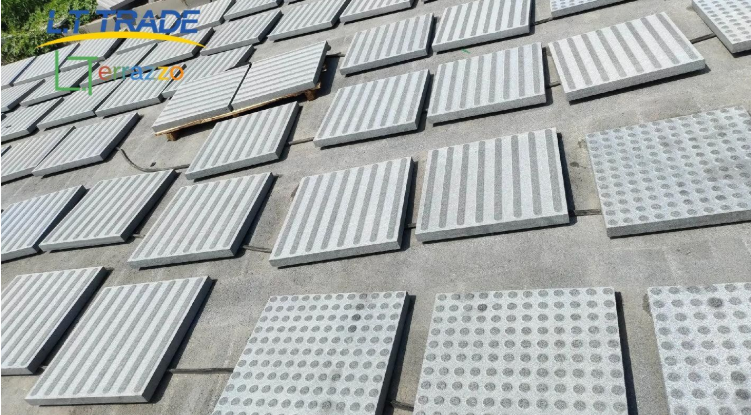

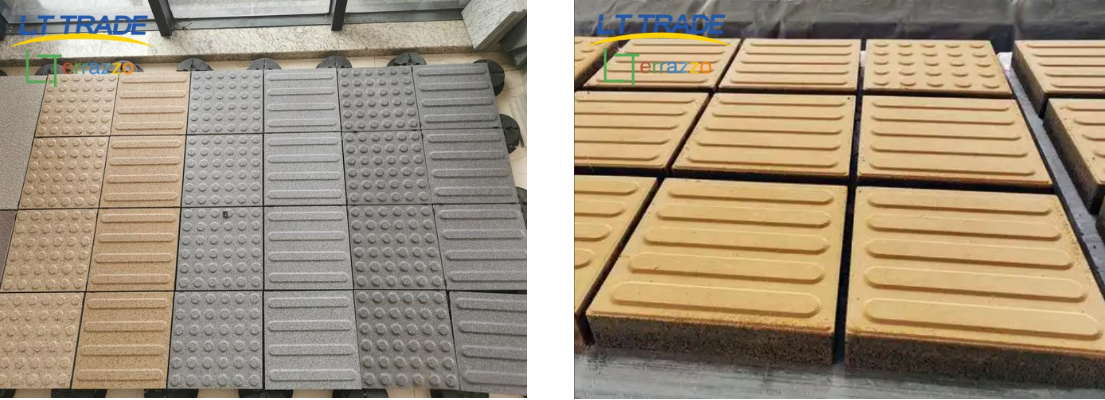

2. Thoughtful Functional Design: 1) Precise Tactile Guidance: The surface features raised linear patterns (for directional guidance) or raised dot patterns (for warning/hazard indication). This allows visually impaired individuals to discern their direction and receive warnings regarding road conditions through tactile sensation underfoot.
2) Visually Friendly Recognition: Typically featuring a high-contrast yellow surface, these tiles create a distinct visual contrast against the surrounding pavement, making them easily identifiable to visually impaired individuals utilizing canes or other visual aids.

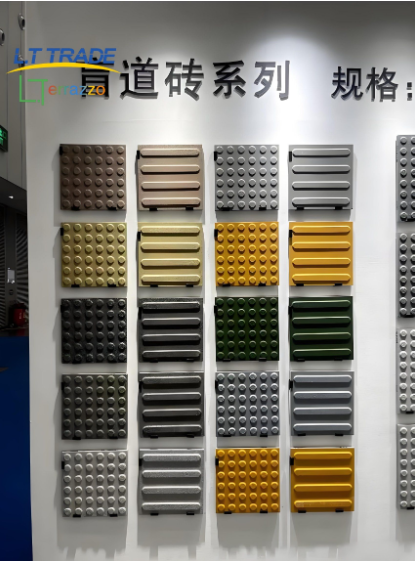

3. Eco-friendly and Customizable: The materials used are recyclable. Additionally, the color and grain size of the aggregates can be customized according to specific requirements, allowing for personalized aesthetic designs while simultaneously maintaining essential practical properties such as slip resistance and weather durability.

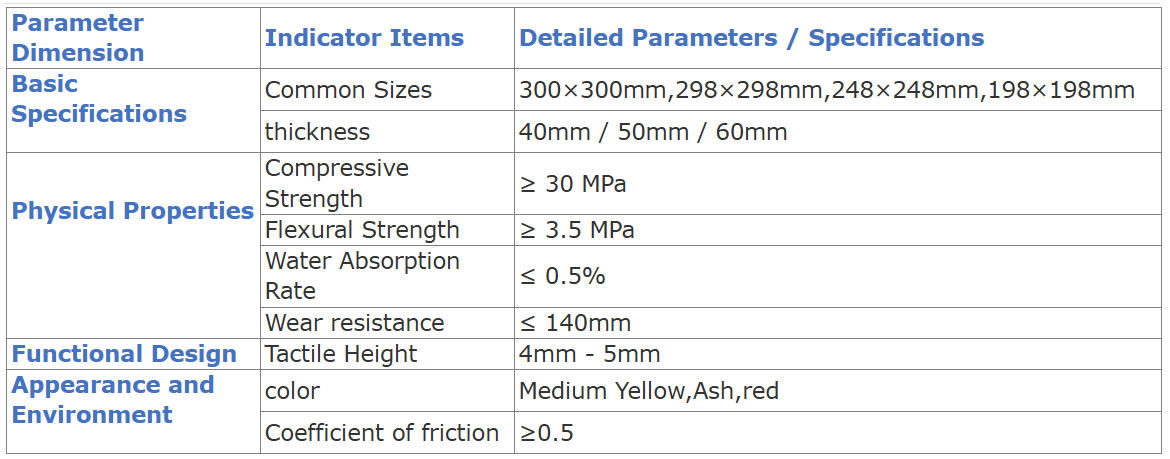

Product Parameters
Applications
Terrazzo tactile paving tiles serve as a vital component of barrier-free urban infrastructure and are primarily utilized in the following settings:

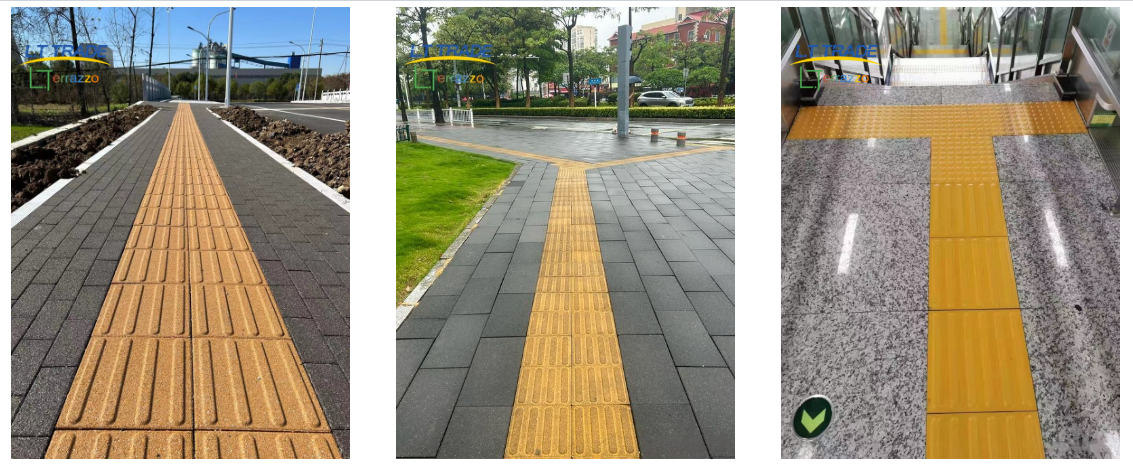

1. Urban Road Systems: Installed within the tactile paving zones of sidewalks along major and minor urban thoroughfares, they provide continuous navigational guidance for the visually impaired, facilitating their safe passage during daily commutes.

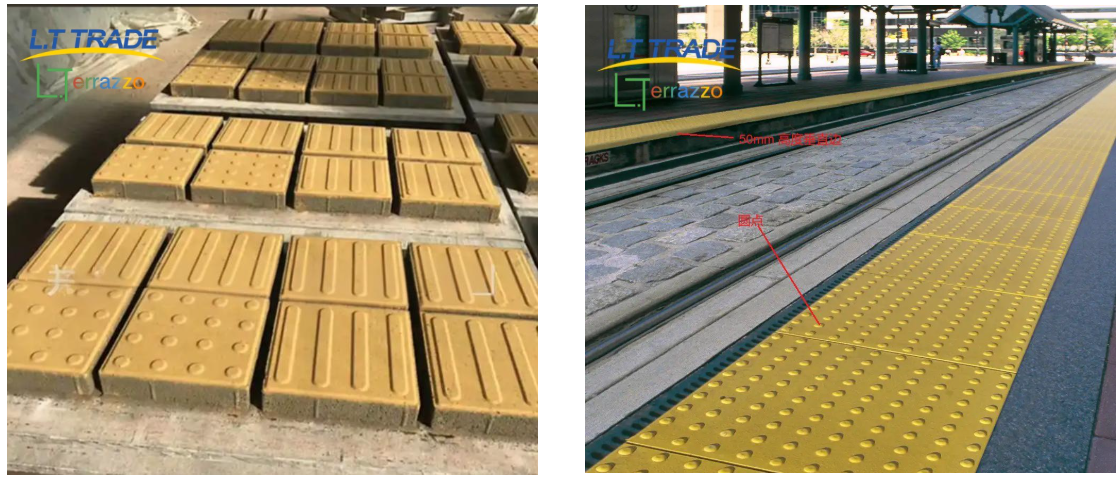

2. Public Transportation Hubs: Laid out in the internal corridors, entrances/exits, and transfer areas of subway stations, railway stations, bus terminals, and airports, they guide the visually impaired to easily locate key points such as waiting areas, ticket gates, and exits.
3. Public Buildings and Venues: Applied within the internal passageways and entrances/exits of public facilities-including hospitals, schools, libraries, museums, and shopping malls-as well as along the walkways of parks and scenic areas, ensuring that the visually impaired can navigate these spaces independently.

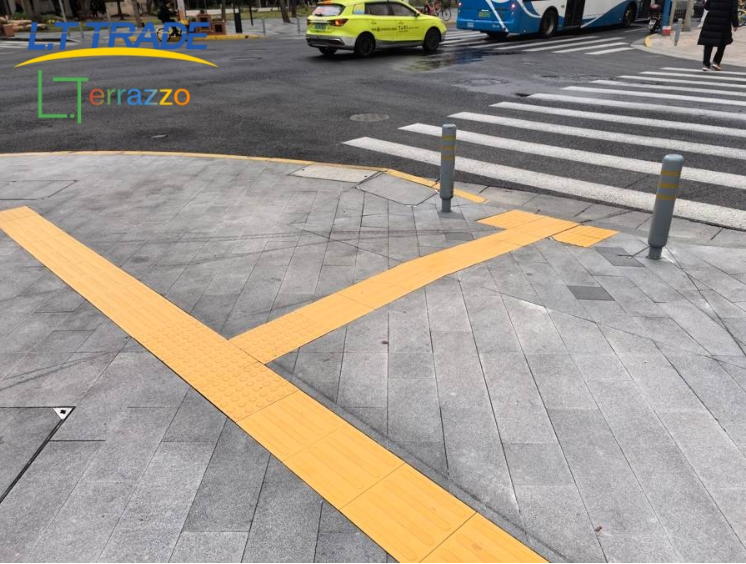

4. Specialized Zones: Installed within the tactile paving zones of pedestrian overpasses, underpasses, and tunnels; additionally, warning-style tactile paving is strategically placed at locations requiring alerts-such as intersections and areas immediately preceding obstacles-to alert the visually impaired to changes in road conditions.
